Smoke evacuation
Patent：200920313421.4

Video Description

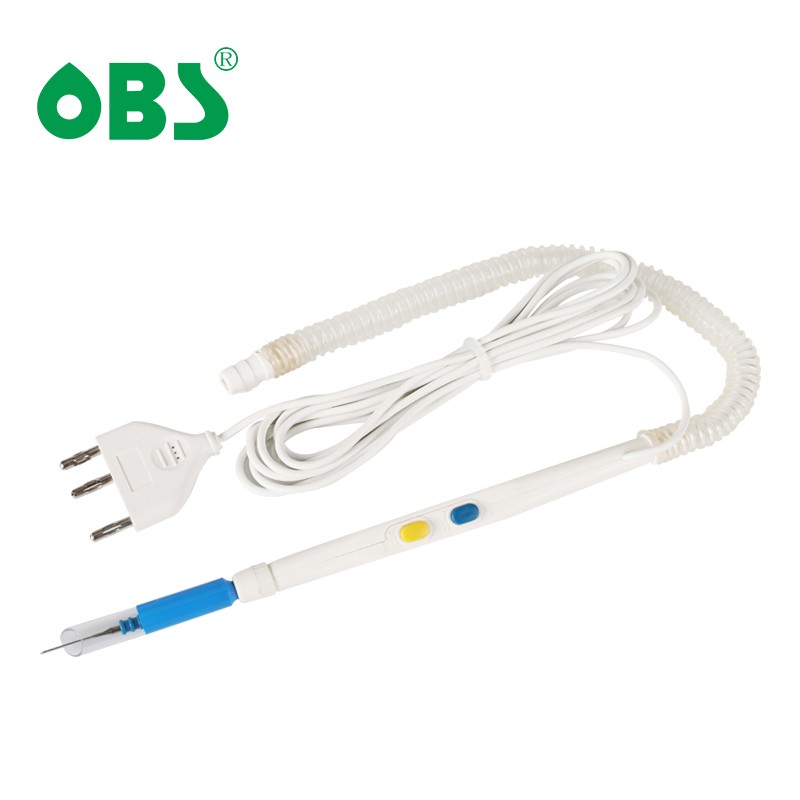

Disposable Electrosurgical Pencil( Disposable ESU Pencil,  Cautery Pencil ) Smoke Evacuation

FDA 510(k) Approval

Company FDA Registation No.: 3007748793

Device K No.:K092634

CE Mark

Range of Using:

Match with Electrosurgical Generator(Unit), Radio Frequency Generator(Unit) and other High Frequency Equipment.

Type:

D: Disposable

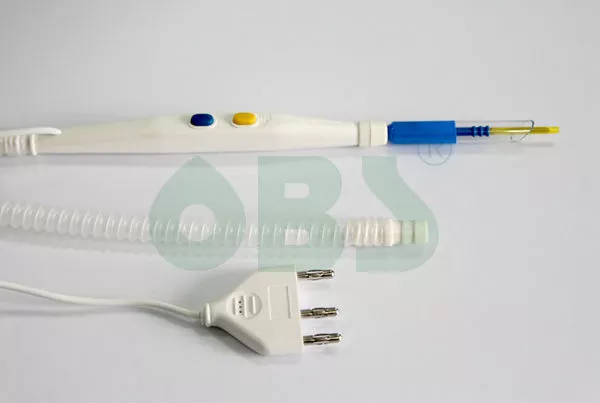

These devices are single use supplied sterile. Check plug matching on generator base and connect. Press CUT/yellow button for cutting and COAG/blue button for coagulation, lock ring for adjusting the lenght of the evacuation tube, maximum length of the tube is 7cm.

Product feature:

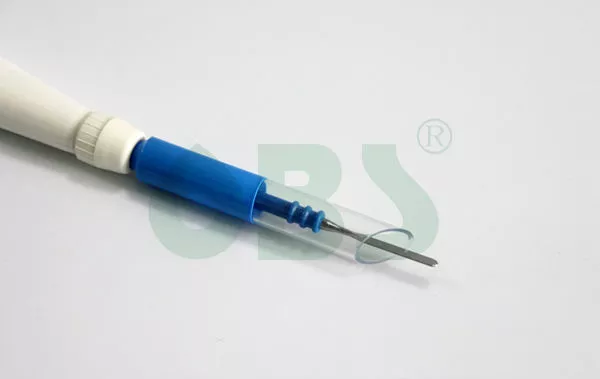

Equip with smoke evacuation function. Evacuation tube can be extended by adjusting the lockable ring.

Tubing length option: 30cm and 3m

Switches have a high level of tactile feedback - surgeons can hear and feel the switch engage, preventing accidental activation of the device.

Designed with the surgeon in mind

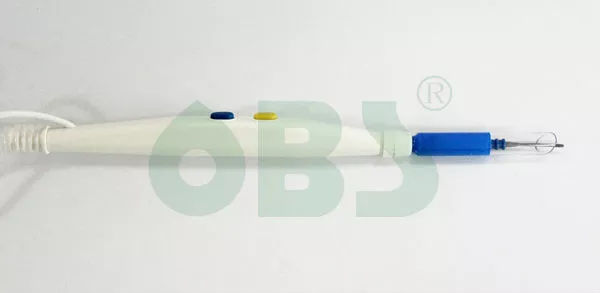

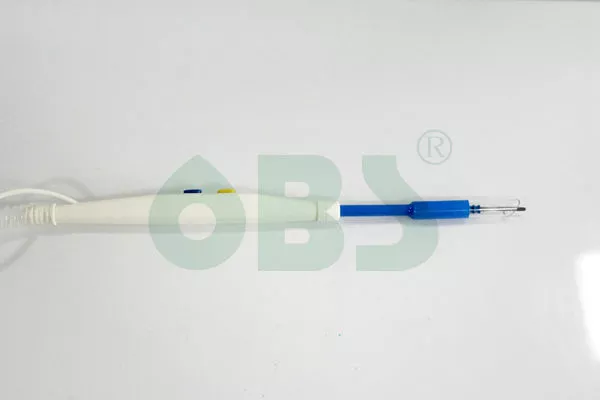

-Slim and lightweight, tapered ergonomic design, streamlined design,

-Slip-proof handling and water resistant Rocker or Push-Button Switch

-Switch and buttons designed for smooth activation

-Equip with a range of monopolar cutting and coagulation electrodes to satisfy all users requirements.

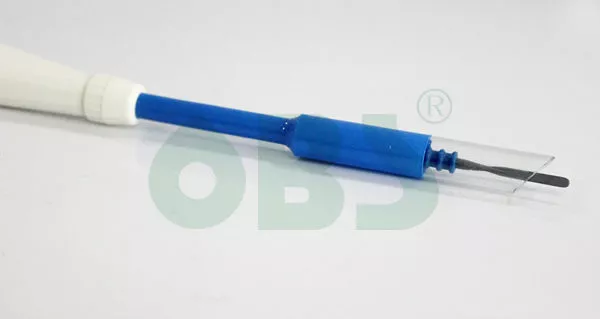

-With hexagonal shape to protect against inadvertent twisting, the electrodes can be locked safely into place and are easily exchanged and replaced.

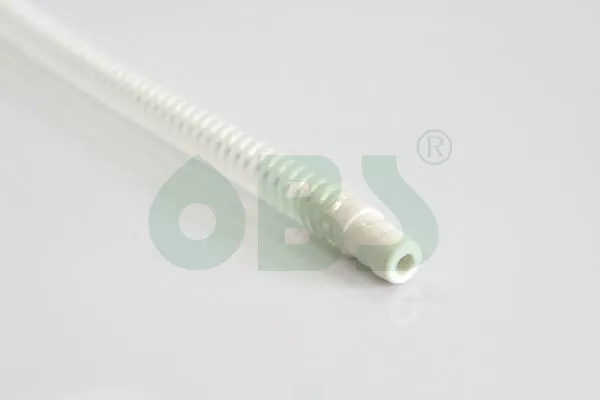

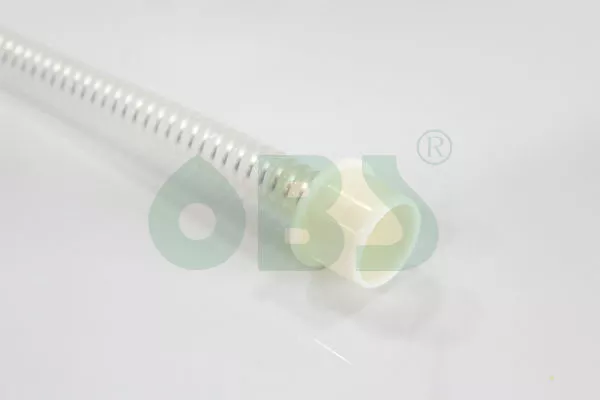

Tube ends for selection to be fit with the suction machine

Warning

These devices should never be used when:

There is visible evidence of damage to the exterior of the device such as cracked or damaged plastic or connector damage.

These devices fail the inspection described herein.

In the presence of flammble gases, flammable prep solutions or drapes. Oxidizing. Gases such as Nitrous Oxide (N2O),or in oxygen-riched environments.

Do not used monopolar electrosurgery on small appendages, as in circumcision or finger surgery.
