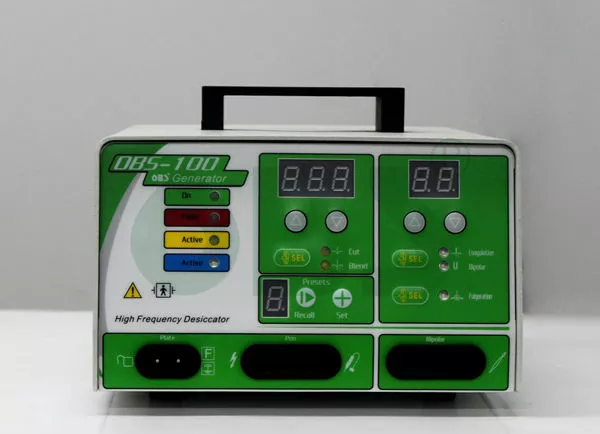

OBS-100C(I)
  • OBS-100C(I)
  • OBS-100C(I)
  • OBS-100C(I)

OBS-100C(I)
Intelligent Electrosurgical Unit


Place of Origin:Guangdong, China
Brand Name:OBS
Model Number:100C(I)
Properties:The Basis of Surgical Instruments
Type:Electrosurgical Generator
Instrument classification:Class I
Warranty:1 year
Product name:OBS-100C1
Certificate:CE ISO
Usage:Surgical Room

Email: sales@bs0750.com

Video Description

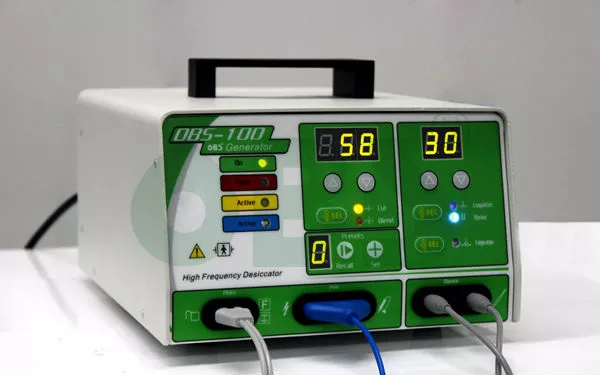

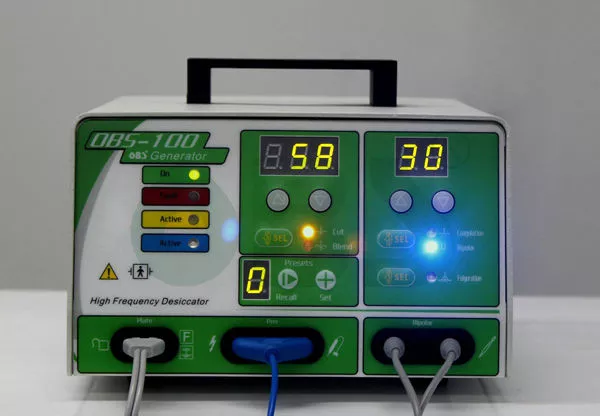

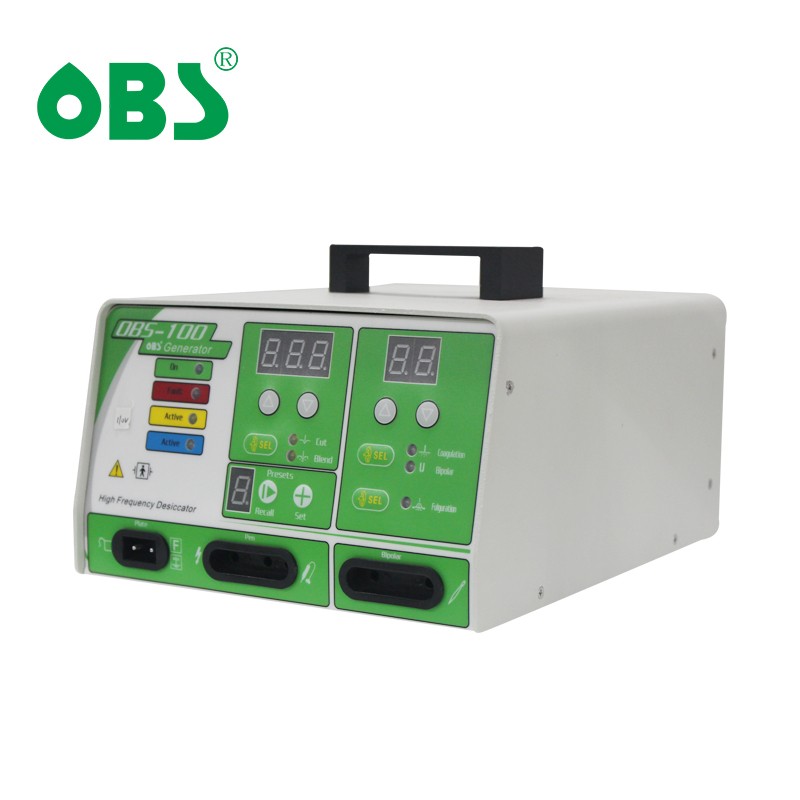

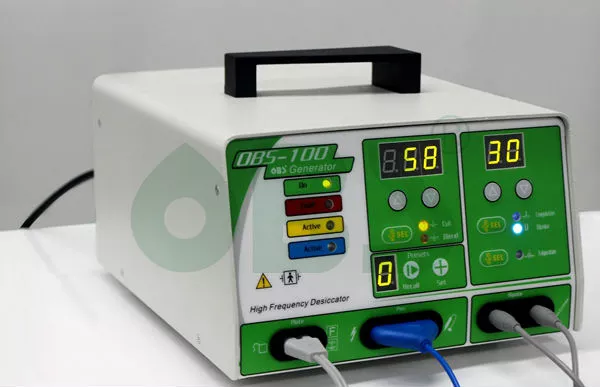

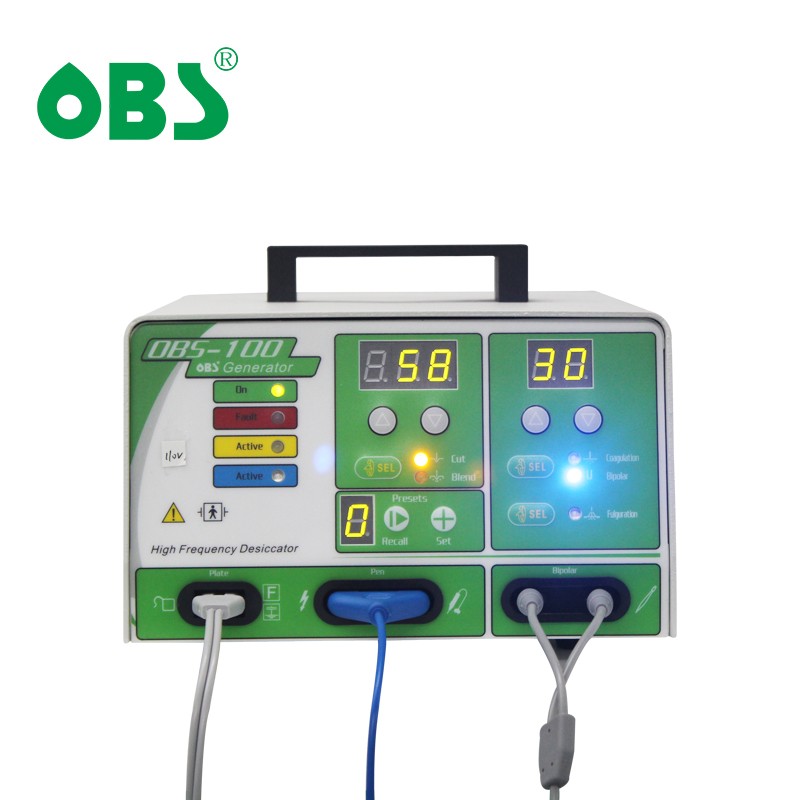

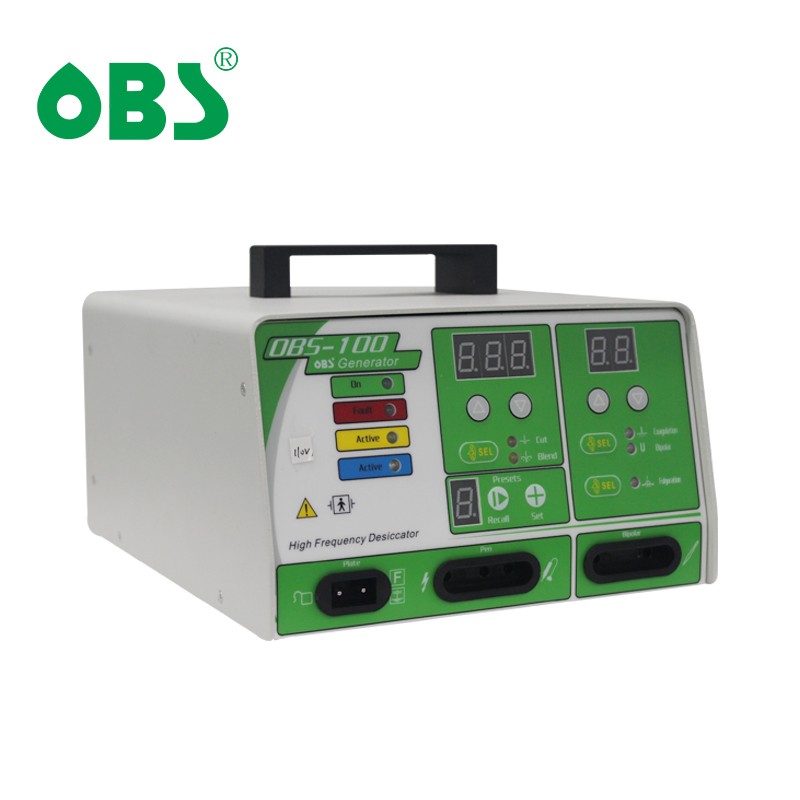

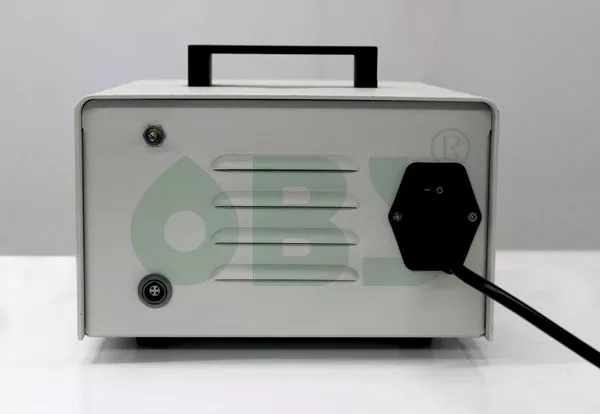

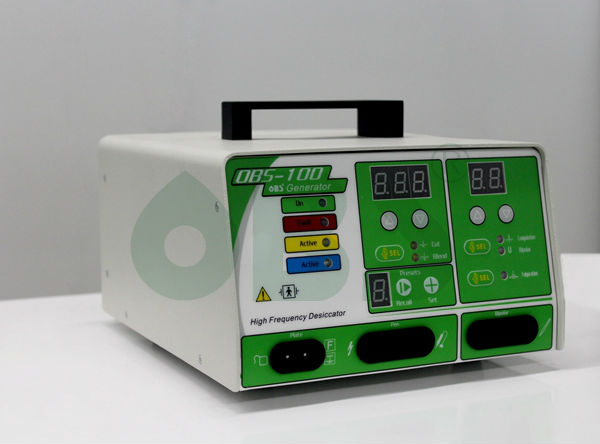

CE certified OBS Electrosurgical Unit 100C(I)

Portable in size, available in both monopolar and bipolar modes, convenient handle power control and memory function, suitable for micro surgery, gynecology and arthroscopy.


CE certified OBS Electrosurgical Unit(ESU Generator) 100C(I)



CE certified OBS Electrosurgical Unit(ESU Generator) 100C(I)



CE certified OBS Electrosurgical Unit(ESU Generator) 100C(I)



CE certified OBS Electrosurgical Unit(ESU Generator) 100C(I)



CE certified OBS Electrosurgical Unit(ESU Generator) 100C(I)



CE certified OBS Electrosurgical Unit(ESU Generator) 100C(I)



Technical parameters:


Environmental temperature range:

5°C~ 40°C

Relative moisture range:

≤80%

Atmosphere pressure range:

86.0 ~ 106.0 Kpa

 Working modes:


Pure cut:

1w ~ 60w (Load 500Ω)

Blend:

1w ~ 60w (Load 800Ω)

Coagulation:

1w ~ 60w (Load 1000Ω)

Fulguration:

0.1w ~ 35w (Load 1000Ω)

Biploar:

1w ~ 30w (Load 200Ω)

Technology data:


Voltage:

220V±10V, 50Hz ±1Hz

Working frequency:

357 KHz ~ 575 KHz

Leakage currents to ground:

Less than 0.5mA

Leakage currents to patient:

Less than 0.01mA


Display Setting:


Fulguration

a.      0-10 range: 0.1watt increments

b.      10-35range: 1.0 watt increments

Cut, Blend, Coagulation and Bipolar

1.0 watt increments


Power supply:220V±10%,50±1%Hz.


Transportation and storage


a)        Ambient temperature range: -40°C~55°C;

b)        Relative moisture range: ≤95%;

c)        Atmosphere pressure range: 500hPa~1060hPa.


Key Features


OBS-100 Electrosurgical Generator with state-of-art technology offers superb performance on the electro-surgery, and shows remarkable safety, reliability and convenience.

1.Two levels of coagulation: pinpoint coagulation and fulguration

Pinpoint coagualtion provides precise control of bleeding in localized areas.

Fulguration provides greater control of bleeding in highly vascular over surface areas.

2.Presets

The unit incorporates as many as ten user-defined presets for easy recall of frequently and settings.

3.Isolated RF output for Cut, Blend and Coag modes

This minimizes the potential of alternate site burns.

4.Ground Referenced RF output for Fulguration modes

5.Self diagnostics

These diagnostics continually monitor the unit to ensure proper performance. If the diagnostics is unsuccessful, the warning tones can be heard.


Accessories Included:


Electrosurgical Pencil, disposable                           2pcs

Bipolar Forceps with cable, reusable                      1pc

Disposable Electrosurgical Pad                               2pcs

Cable for Electrosurgical Pad, reusable                  1pc

Footswitch                                                              1pc

Power cord                                                             1pc

Manual                                                                    1pc
