  1. HOME > PRODUCTS > ELECTROSURGICAL DEVICES AND ACCESSORIES > Electrosurgical Pencil
OBS-Dr
  • OBS-Dr
  • OBS-Dr
  • OBS-Dr

OBS-Dr
Disposable rocker control


Place of Origin:Guangdong, China
Brand Name:OBS
Model Number:#0030
Properties:The Basis of Surgical Instruments
Type:Knife
Mode:OBS-Db #0030


Color:Grey
Sterilization:EO
Shell Lenght:16.5cm
Cable Lenght:3m/5m
Plug:3-pin plug
Weight Per Piece:0.068kg

Email: sales@bs0750.com

Video Description

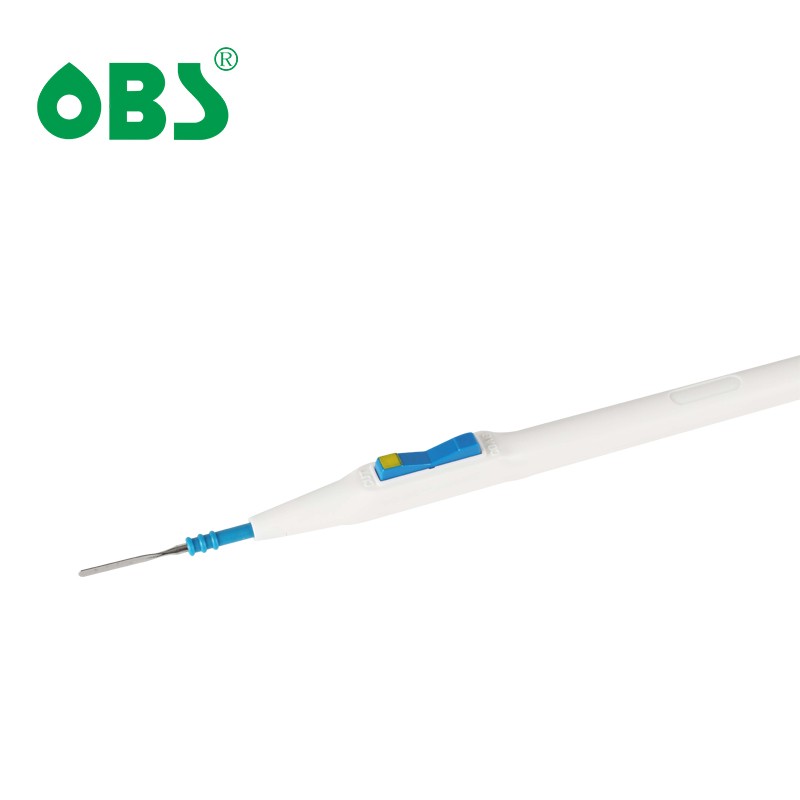

Disposable Electrosurgical Pencil --Rocker Control( Disposable ESU Pencil,  Cautery Pencil )


FDA 510(k) Approval

Company FDA Registation No.: 3007748793

Device K No.:K092634

CE Mark



FDA & CE Certified OBS Disposable Electrosurgical (ESU) Pencil(rocker control)--Certified FDA 510(k),CE



Range of Using:


Match with Electrosurgical Generator(Unit), Radio Frequency Generator(Unit) and other High Frequency Equipment.


Type:


D: Disposable


These devices are designed to be used as accessories in conjunction with those electrosurgical units and electrodes. These devices are single use supplied sterile. Check plug matching on generator base and connect. Press CUT/yellow button for cutting and COAG/blue button for coagulation. Maximum voltage is not be exceed 90KV peak


Product feature:


Handswitching pencils with rocker switch controls accommodates the surgeon's preference. Switches have a high level of tactile feedback - surgeons can hear and feel the switch engage, preventing accidental activation of the device.


Designed with the surgeon in mind

-Slim and lightweight, tapered ergonomic design, streamlined design,

-Slip-proof handling and water resistant Rocker or Push-Button Switch

-Switch and buttons designed for smooth activation

-Equip with a range of monopolar cutting and coagulation electrodes to satisfy all users requirements.

-With hexagonal shape to protect against inadvertent twisting, the electrodes can be locked safely into place and are easily exchanged and replaced.



FDA & CE Certified OBS Disposable Electrosurgical (ESU) Pencil(rocker control)--Certified FDA 510(k),CE




FDA & CE Certified OBS Disposable Electrosurgical (ESU) Pencil(rocker control)--Certified FDA 510(k),CE




FDA & CE Certified OBS Disposable Electrosurgical (ESU) Pencil(rocker control)--Certified FDA 510(k),CE



Electrical Performance Data


Maximal Output Current

Frenquency Confine

Current Resistence

Output Power

1A

0-1.0MHz

200Ω

50-80W


Warning


These devices should never be used when:

There is visible evidence of damage to the exterior of the device such as cracked or damaged plastic or connector damage.

These devices fail the inspection described herein.

In the presence of flammble gases, flammable prep solutions or drapes. Oxidizing. Gases such as Nitrous Oxide (N2O),or in oxygen-riched environments.

Do not used monopolar electrosurgery on small appendages, as in circumcision or finger surgery.

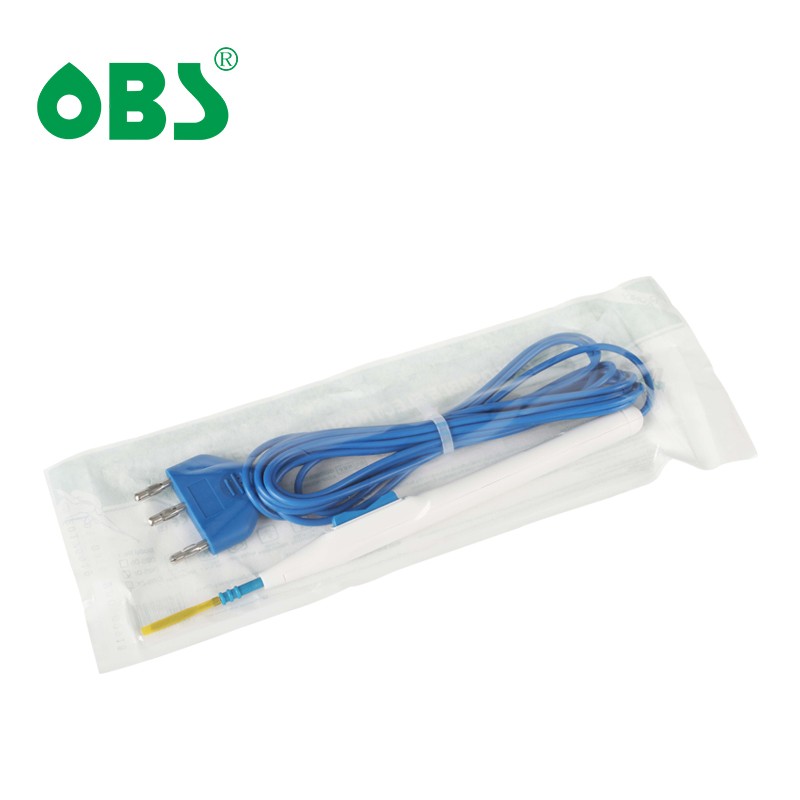

Packing



Content

Net Weight

Gross Weight

Carton Size

Paper Packaging

100 pcs/ctn

6.8kg

7.3kg

36*27*28

Blister Packaging

25 pcs/ inner ctn;

4 inner ctns/outer ctn

9.8kg

11.5kg

53.5*36*40
