OBS-Dpc

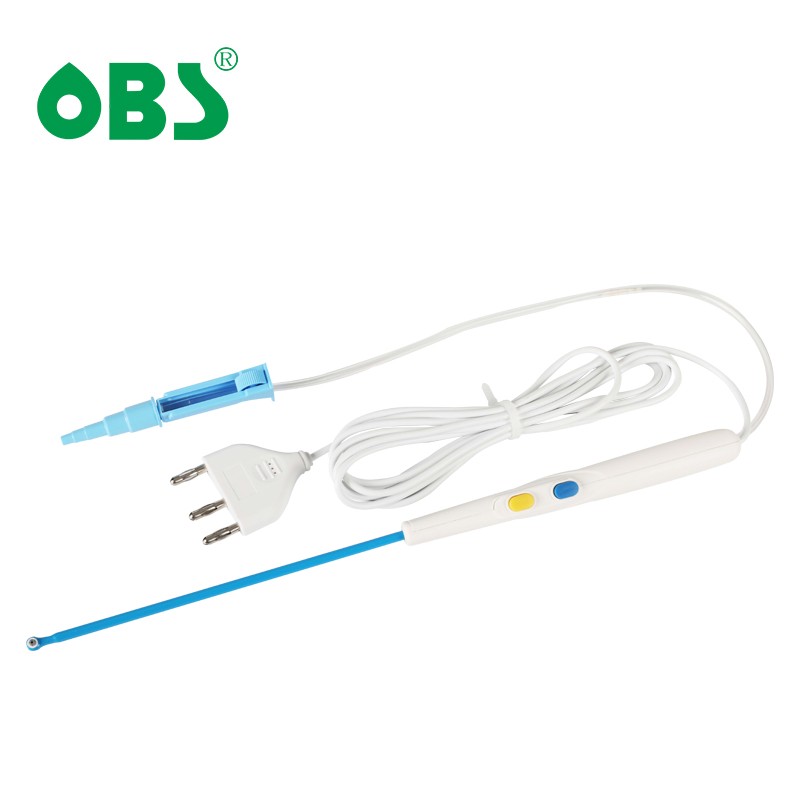

Arthroscopic Ablator

Video Description

Disposable Electrosurgical Pencil

----------Arthroscopic Ablator

FDA 510(k) Approval

Company FDA Registation No.: 3007748793

Device K No.:K092634

CE Mark

Range of Using:

Match with Electrosurgical Generator(Unit), Radio Frequency Generator(Unit) and other High Frequency Equipment.

Type:

D: Disposable

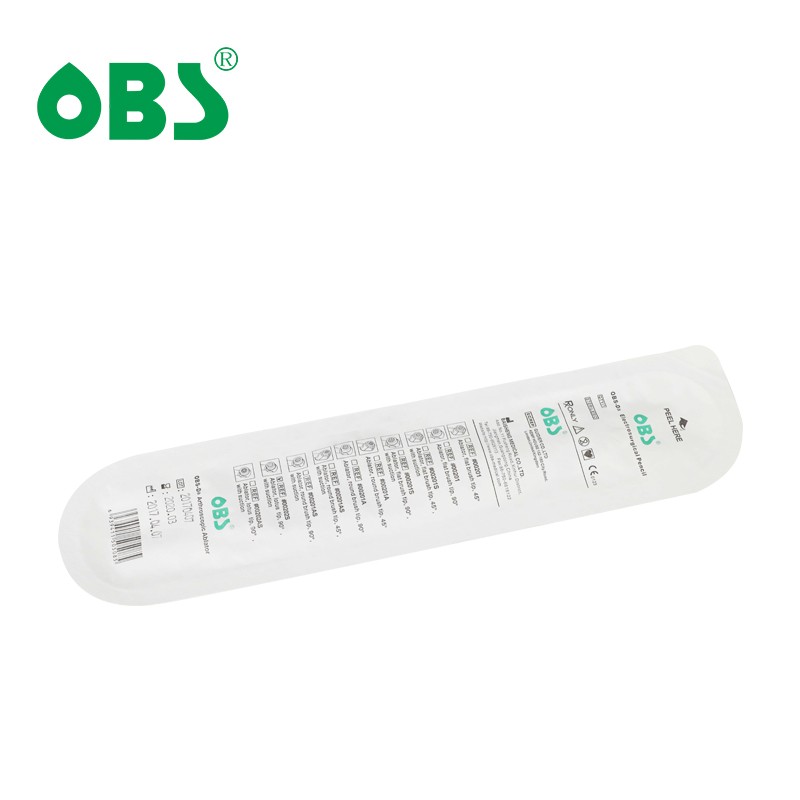

These devices are single use supplied sterile. Check plug matching on generator base and connect. Press CUT/yellow button for cutting and COAG/blue button for coagulation. Maximum voltage is not be exceed 90KV peak

Product feature:

1.Intended for ablation,tissue modification and coagulation of soft tissue in arthroscopic procedures such as hip,  shoulder, ankle, wrist, elbow and knee.

2.Extending shaft enables good visualization and easy insertion through subcutaneous tissue,and  well insulated coating guarantee its safety and reliability.

3.Irrigation/suction solution is available with a cannula and an adjustable flow control valve.

4.Tips in different shapes and angles fit in particular arthroscopic procedure.

5.Compatible with most electrosurgical generators.

1.   #00201-45o , #00201S-45o ------------------Flat Brush Tip. 45o

2.   #00201A-45o, #00201AS-45o-------------- Arc Brush Tip, 45o

3.   #00201-90o,  #00201S-90o------------------Flat Brush Tip. 90o

4.   #00201A-90o, #00201AS-90o-------------- Arc Brush Tip, 90o

5.  #00202S -90o ------------Blossom Tip, 90o

6.  #00202AS-90o ----------- Lotus Tip, 90o

Warning

These devices should never be used when:

There is visible evidence of damage to the exterior of the device such as cracked or damaged plastic or connector damage.

These devices fail the inspection described herein.

In the presence of flammble gases, flammable prep solutions or drapes. Oxidizing. Gases such as Nitrous Oxide (N2O),or in oxygen-riched environments.

Do not used monopolar electrosurgery on small appendages, as in circumcision or finger surgery.
